| Battery | Deep cycle, lead acid battery,Trojan brand, imported |
| Motor Power | Front 3.8KW , rear 5.3KW DC |
| Controller | 2XCurtis 1244 |
| Passenger capacity | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km) | >40 |
| Max. speed | 30 |
| Minimum turning radius (m) | 3.8 |
| Max. climbing ability | 45% |
| Max. loading weight | 320kgs |
| Overall dimensions (mm) | 3120x1395x1990(without searching light) |
| Body and Frame | |
| Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | Fibreglass |
| Windshield | one-piece Organic glass |

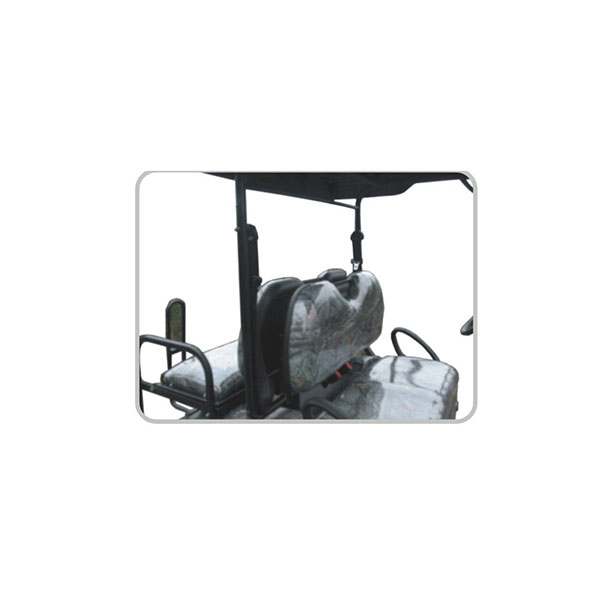

| Large Seats: | Rebond seat + artificial leather, formed armrest, plastic seat bottom |
| Floor | rubber |
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key |
| Beverage holders | 4 cups drink holders |
| Electric system | |
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. .Reversing alarm |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 22A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic disc brake + hand brake |
| Accelerator | Stepless speed change |
| Suspension system | Front&Rear independent suspension |
| Driving mode | Front axle drive and rear axle drive (4×4) |
| Rear axle | Integrated |
| Wheel & Tyre | 12×7 Steel wheel, 24 x 8-12 tyre |
