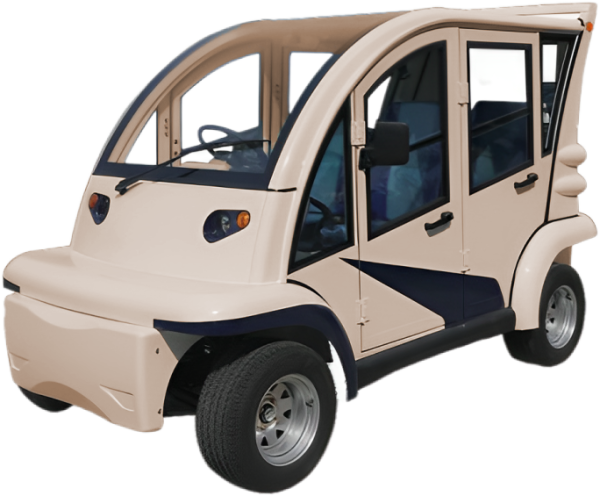

| Model | EG6043KF | EG6043KF01 | EG6043KF06 | |
| System | 48V/4KW Series | 48V/4KW Sepex | 48V/5KW AC System | |
| Key Components | ||||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | |
| Motor | 3.8KW Chinese motor | 3.8KW Chinese motor | 5KW Chinese Motor | |
| Controller | Curtis 1204 (275A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minute) | |
| Performance | ||||
| Passenger capacity | 4 | 4 | 4 | |
| Range (loaded) based on flat road at a speed of 20km/h (km)＊ | >50 | >50 | >65 | |
| Max. speed @12.49:1 gear ratio | 30 | 32 | 32 | |
| Max. speed @10.25:1 gear ratio | / | 40 | — | |
| Minimum turning radius (m) | 4 | 4 | 4 | |
| Max. climbing ability (loaded) @ 12.49:1 gear ratio | 20% | 20% | 20% | |
| Max. climbing ability (loaded) @ 10.25:1 gear ratio | 15% | 15% | — | |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | |
| Max. loading weight | 320kgs | 320kgs | 320kgs | |
| Net weight | 875kgs | 875kgs | 885kgs | |
| Dimensions | ||||
| Overall dimensions (mm) | 3060x1410x1960 | |||
| Min. ground clearance (mm) | 155 | |||
| Wheelbase (mm) | 2080 | |||
| Front wheel tread (mm) | 1210 | |||
| Rear wheel tread (mm) | 1160 | |||
| Detailed Configurations: (“S” stands for Standard configuration and “O” stands for Optional configuration） | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with sand blasting+paint treatment | |||
| Body | Fibreglass + Plastic | S | ||
| Hard door | Steel | S | ||
| Roof | Fibreglass | S | ||
| Windshield | Laminated glass | S | ||
| 3 point seat belt | 4pcs | O | ||
| Large Seats: | ||||
| 1) backrest and cushion | Sponge + artificial leather | S | ||
| 2) armrest | Soft expanded plastic | S | ||
| Hand holder for rear passenger | 2pcs, fixed in the back of front backrest | S | ||
| Rear storage box | Steel | S | ||
| Floor | Bamboo + artificial leather | S | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | O | ||
| Side rear view mirror | Two pieces per cart | S | ||
| Battery watering system,48V system | without water supply tool | O | ||
| Manual Pump | water supply tool (other water supply tools are available) | O | ||
| Police light with loud speaker | / | O | ||
| Emergency Power-Off Button | / | O | ||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. | S | ||
| Dashboard | forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items | S | ||
| Audio System | Radio and MP3 receiver | S | ||
| CD player to replace Radio | O | |||
| Microphone | Wired | O | ||
| Speaker | 2pcs | S | ||
| Reversing alarm | \ | S | ||
| Switch assembly | Lights switch, horn switch, wiper switch | S | ||
| Wiper | 12V | S | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 22A onboard | S | ||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | S | ||
| Electric Power Steering | / | O | ||
| Brake system | Four wheel hydraulic drum brake+Hand brake | S | ||
| Four wheel hydraulic drum brake+foot parking brake | O | |||
| Front disc brake and rear drum brake, with vacuum booster | O | |||
| Accelerator | Stepless speed change | S | ||
| Front suspension | Independent suspension, helix spring + shock absorber | S | ||
| Rear suspension | rear plate spring + shock absorber | S | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | S | ||
| Rear axle | Integrated, Gear ratio12.49:1 | S | ||
| Wheel & Tyre | 225/55R12C tire, 12X7 aluminum wheel | S | ||
| 175/60 R13 tire,13*5J steel wheel | O | |||
| 225/55R12C tire,12*7 steel wheel | O | |||
