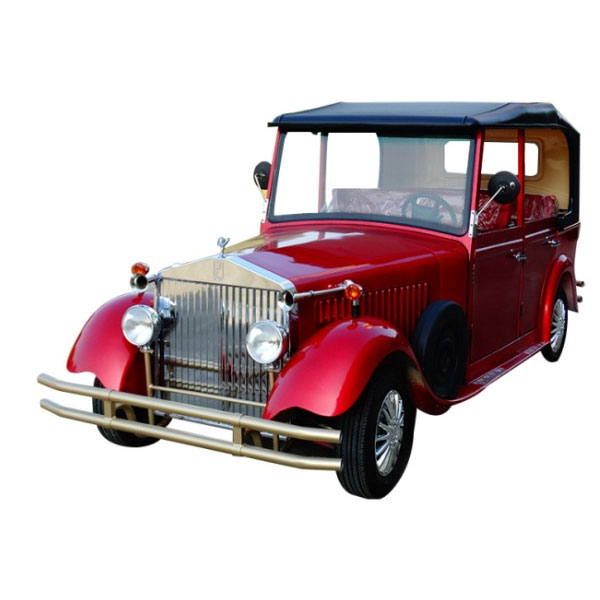

| Model |
EG6060K01 |
|
| System |
48V/4KW Series |
|
| Unit Price (FOB Shanghai)(Based on FCL) |
US$6,600.00 |
|
| Key Components |
|
|
|
| Battery |
8pcs T105 (185Ah@5hr) |
|
| Motor |
4KW Chinese motor |
|
| Controller |
Curtis 1204M (325A @ 2 minutes) |
|
| Performance |
|
|
|
| Passenger capacity |
6 |
|
| Range (loaded) based on flat road at a speed of 20km/h (km)＊ |
≥70 |
|
| Max. speed (km/h) |
≤25 |
|
| Minimum turning radius (m) |
6.3 |
|
| Max. climbing ability (loaded) |
15% |
|
| Max. movement after brake at speed of 20km/h |
≤4m |
|
| Max. loading weight |
480kgs |
|
| Net weight |
970kgs |
|
| Dimensions |
|
|
|
| Overall dimensions (mm) |
4340X1610x1890 |
|
| Min. ground clearance (mm) |
120 |
|
| Wheelbase (mm) |
2900 |
|
| Front wheel tread (mm) |
1385 |
|
| Rear wheel tread (mm) |
1385 |
|
| Detailed Configurations: (“S” stands for Standard configuration and “O” stands for Optional configuration） |
|
|
|
| Body and Frame |
|
|
|
| Frame |
Unitary welded steel framework |
S |
| Body &Canopy |
FRP |
S |
| Door |
Aluminum, 4pcs |
|
S |
| F/R bumper |
Carbon steel |
|
S |
| Floor |
artificial leather, red carpet |
|
S |
| Side trim |
FRP |
|
S |
| Foot step |
Aluminum |
|
S |
| Dashboard |
FRP |
|
S |
| Front Windshield |
Laminated windshield |
|
S |
| Rear Windshield |
toughened glass |
|
S |
| Seat |
Sponge+super-fibre leather+wood bottom, backrest and bottom cushion be seperated |
S |
| luxury seat (cannot install seat belts) |
O |
| 2 point Seat belts |
2 point, 6pcs working with standard seperated seats |
O |
| Side rear view mirror |
Two pieces per cart, chrome coated |
S |
| Electric system |
|
|
|
| Lighting system and horn |
2 headlights, 2 front turn signals, 2 front fog lights, 2 taillights( each combined 1 brake light with 1 turn signal and 1 fog light), with insulated DC-DC converter (converting from 48V/60V to 12V), air-horn. |
S |
| Reversing alarm |
\ |
S |
| Dashboard |
speedometer, amperemeter, voltmeter |
S |
| Emergency stop button |
\ |
|
O |
| Audio System |
Radio and MP3 receiver |
S |
| Emergency power-off button |
|
|
O |
| Wiper assembly |
12V |
|
S |
| Charger |
China origin, input 110V-240V~50Hz-60Hz, output 48V/22A Off board charger |
S |
| Offboard, Delta-Q 48V/18A |
O |
| Steering and Suspension |
|
|
|
| Steering system |
Single-stage rack and pinion steering system, automatic rocker compensating function |
S |
| Brake system |
Dual cycle 4-wheel hydraulic front disc rear drum brake with hand brake |
S |
| Accelerator |
Stepless speed change |
S |
| Suspension system |
Front: Independent macphersan suspension system |
S |
| Rear: Non-independent suspension system |
S |
| Driving mode |
Rear axle two stage deceleration, motor direct driving |
S |
| Rear axle |
Gear ratio 12.49:1 |
S |
| Wheel & Tyre |
5J*14 steel rims & 175/70R14 vacuum tires |
S |
|
Chromeplate wheel cover, |
O |
